How to Choose Solar Street Lights for Highway and Municipal Projects: Sourcing Guide
Evaluating separated solar street lighting systems for utility-scale public works projects centers on five structural, optical, and electrical engineering criteria:
- 9-Meter Dual-Arm Structural Distribution: Symmetrical or asymmetrical dual-arm configurations delivering tailored illumination across multi-lane expressways and parallel pedestrian sidewalks from a single foundation anchor.
- Independent Monocrystalline PV Tilt Optimization: Detached monocrystalline solar modules oriented at optimal tilt angles, maximizing year-round solar energy harvesting unconstrained by roadway luminaire alignment.
- Weather-Sealed Deep-Cycle Storage Integration: High-capacity battery systems isolated from high ambient surface heat, ensuring steady electrochemical performance across continuous overcast weather.
- Intelligent Photocell and PIR Motion Modulation: Automated dusk-to-dawn switching coupled with passive infrared detection, dynamically balancing roadway safety with electrical energy conservation.
- Heavy-Duty Hot-Dip Galvanized Pole Engineering: Certified Q235B and Q345B structural steel shafts treated with 80 to 100 microns of hot-dip galvanization, maintaining structural stability against heavy wind loads.
9-Meter Dual-Arm Structural Geometry and Dual-Carriageway Photometric Coverage

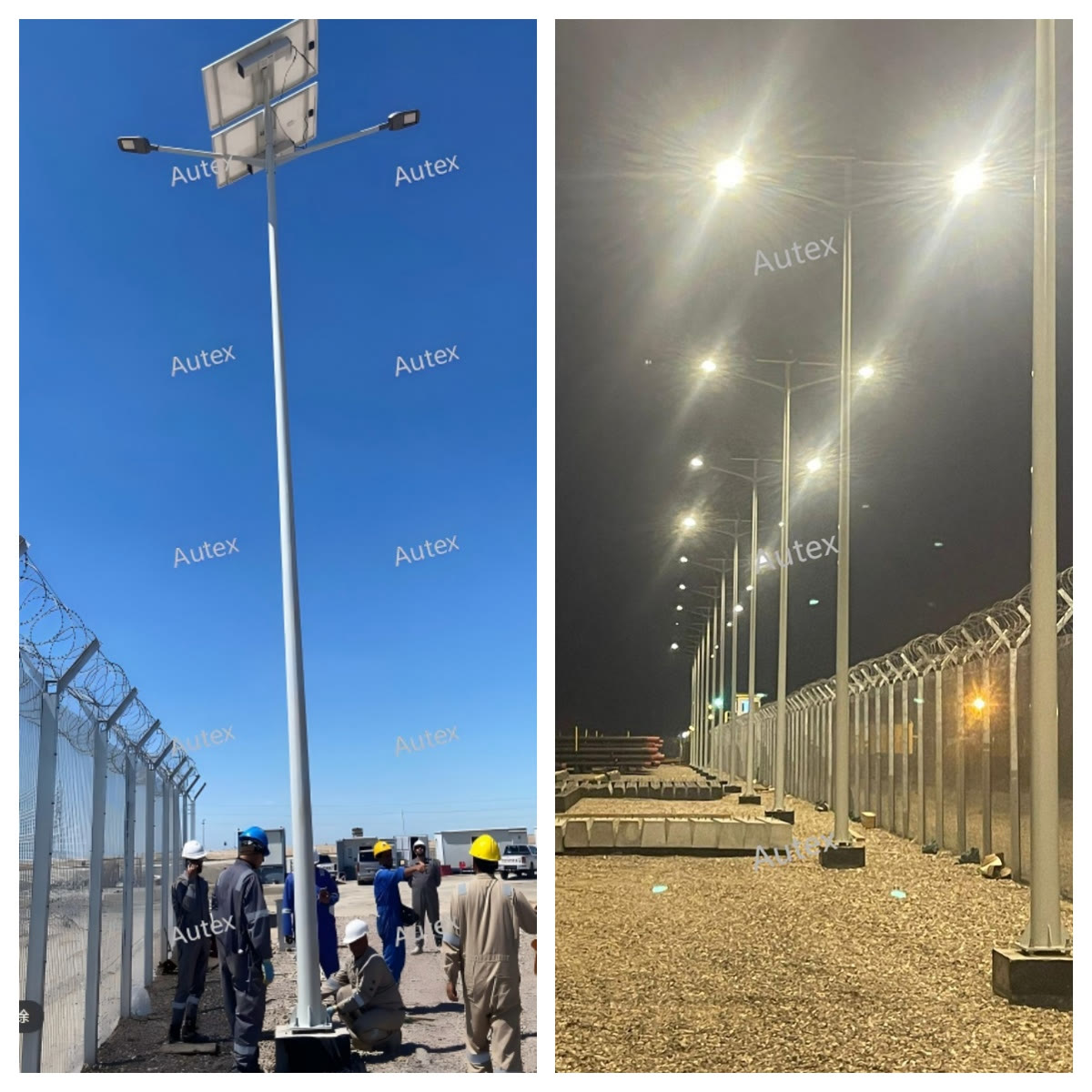

Highway interchanges and arterial corridors present complex cross-sectional lighting challenges, requiring simultaneous illumination of fast-moving vehicular lanes and adjacent pedestrian access routes. The 9-meter split-type solar configuration resolves this spatial requirement by incorporating a dual-arm outreach bracket mounted to a single tapered steel shaft. The primary roadway arm extends over the active traffic carriageway, projecting high-flux illumination across travel lanes, while the secondary arm illuminates pedestrian sidewalks and service shoulders.
This integrated dual-arm design avoids duplicate pole foundations, cutting civil excavation, concrete casting, and anchor bolt installation costs by half along municipal right-of-ways. Optical lenses mounted within the sealed LED fixtures deliver tailored asymmetrical batwing distributions, directing luminous flux precisely across designated pavement areas without creating blinding glare for oncoming drivers or light trespass into adjacent ecological zones. Base flanges feature reinforced gusset plates and precision CNC-cut mounting slots that anchor securely onto pre-cast concrete footings via high-tensile anchor bolt cages.
Independent High-Efficiency Monocrystalline Photovoltaic Array Orientation
Unlike all-in-one solar fixtures where the solar module angle is constrained by the luminaire orientation, separated solar street lighting systems decouple the photovoltaic panel from the optical arm. The solar array is mounted atop a fully adjustable 360-degree rotational tenon bracket, allowing precision tilt and azimuth orientation toward the geographic solar noon.
The system incorporates high-purity monocrystalline silicon photovoltaic cells delivering conversion efficiencies exceeding 21%. This high conversion capacity ensures that even during seasonal low-sun-angle periods or overcast days, the detached array generates sufficient current to charge the energy storage bank. The elevated mounting position above the lighting arms minimizes particulate accumulation from exhaust fumes, maintaining unobstructed solar absorption throughout decades of operation. Anodized aluminum mounting racks and stainless steel fasteners secure the solar modules against severe aerodynamic buffeting.
High-Capacity Energy Storage Chemistry and 3 to 5 Rainy Day Autonomous Reserve
Off-grid municipal reliability depends on continuous nocturnal operation, regardless of seasonal monsoons or prolonged cloud cover. AUTEX separated solar systems employ high-density lithium iron phosphate (LiFePO4) or deep-cycle gel battery banks configured for multi-day autonomy. The battery enclosure is engineered for pole-mount or underground vault installation, insulating electrochemical cells from extreme ambient temperature swings and direct solar radiant heating.
The energy storage bank is governed by an industrial Maximum Power Point Tracking (MPPT) charge controller that continuously matches electrical impedance between the PV array and battery terminals. The system maintains continuous, full-night illumination across three to five consecutive rainy or overcast days, maintaining dependable illumination along ungrid-tied highway extensions. Internal circuit protections guard against short circuits, overcharging, reverse polarity, and deep discharge conditions.
Dusk-to-Dawn Automation and Dynamic PIR Motion Sensing Control
Balancing optical safety standards with energy conservation requires intelligent, autonomous load management. AUTEX 9-meter separated systems feature built-in dusk-to-dawn photocell intelligence that initiates illumination automatically as ambient daylight fades below 10 lux.
To optimize energy reserves during low-traffic midnight hours, the integrated microcontroller operates in coordination with passive infrared (PIR) motion sensors. The system maintains a baseline energy-saving output (such as 30% luminous output) during inactive periods, ramping instantly to 100% full illumination upon detecting approaching vehicular or pedestrian movement within its wide sensing zone. This responsive dimming strategy extends battery discharge duration and preserves LED module operating life without compromising driver awareness. Programmable multi-stage timers allow municipal authorities to customize dimming curves to match local traffic density patterns.
Heavy-Duty Q235B/Q345B Hot-Dip Galvanized Pole Fabrication and Marine Anti-Corrosion
Structural resilience in exposed highway corridors requires rigorous steel selection, precision welding, and surface passivation. AUTEX fabricates 9-meter lighting poles from certified Q235B and Q345B structural carbon steel, formed into octagonal tapered or round conical profiles using a 1200-ton CNC hydraulic press brake. Longitudinal seams are bonded via automated submerged arc welding, achieving complete joint penetration compliant with international welding standards.
Following mechanical fabrication, the pole shafts undergo chemical pickling, fluxing, and full-immersion hot-dip galvanization in accordance with GB/T 13912-2002 standards. The resulting metallurgical zinc-iron alloy coating provides an average thickness of 80 to 100 microns, creating a resilient metallurgical barrier against atmospheric moisture, road deicing chemicals, and coastal marine air. The galvanized surface is subsequently treated with electrostatic architectural polyester powder coating, cured at high temperatures to provide UV resistance, mechanical impact strength, and an engineered 30-year structural design life.
To review CAD layout drawings, customized pole configurations, and complete project quotation schedules for 9-meter separated solar street lights, please visit our official international portal.
